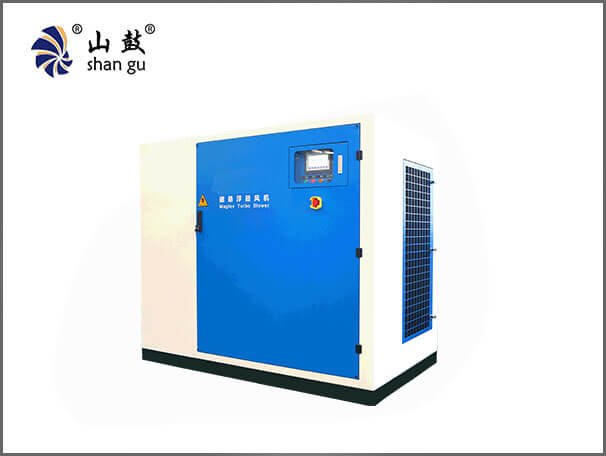

SC SERIES MAGNETIC BEARING TURBO BLOWER

Shangu Magnetic Bearing Turbo adopts 5 DOF active magnetic bearing and high-speed permanent magnet synchronous motor and the world’s leading turbo mechanical technology.
The blower is directly connected by high-speed permanent magnet synchronous motor and high-efficiency three-dimensional flow impeller, which is characterized by no contact, no friction and no lubricant, completely eliminating transmission loss; the impeller is made of high-strength aluminum / titanium alloy, tested by 100% X-ray inspection and 115% over speed test to ensure efficient and reliable operation; the blower realizes intelligent control of frequency conversion, which can realize local and remote control; the whole machine adopts skid mounted mechanism, compact structure and easy installation.
Shangu Magnetic Bearing Turbo Blower, whose noise level is below 80dB, can save more than 30% of energy compared with conventional one. It is an energy-saving and environmental protection product with intelligent control and maintenance free, which has been widely used in different industries.

CORE TECHNOLOGY

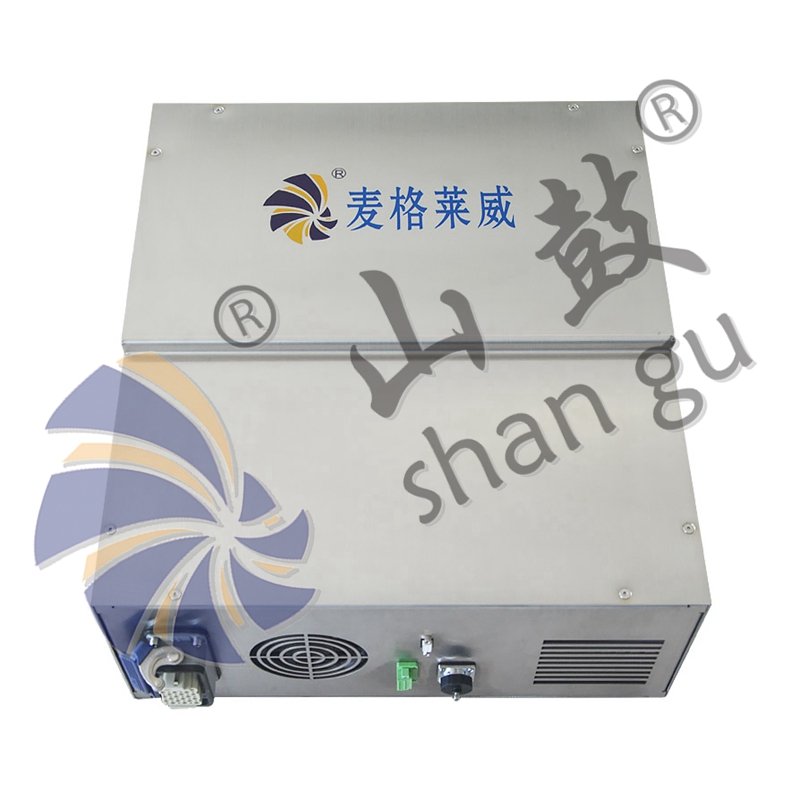

Magnetic Bearing Controller

1. A high-power frequency conversion speed regulation system wih completely independent intellectual property rights. The measure defficlency of the frequency converter (output power/input power) is as high as 98%.
2. Adopt DSP + FPGA active control system, taking advantage of DSP’s fioating·point destruction capability of tens of thousands oftimes per second and FPGA’s large-scale data processing capabilithy.
3. The motor control system, magnetic levitation control system and complete electrical control system can automatically and inteligently adjust the motor according to the pipe network conditions.

Magnetic Bearing

1. Using five degrees of freedom magnetic levitation bearing technology, the rotating shaft is stably suspended through controllable electromagnetic attraction. During the rotation process, the rotating shaft has no mechanical contact and mechanical friction, and is highly efficient.
2. No need speed increasing gears or oily bearings
3. It has self-balancing technology that can automatically adjust according to changes in the spindle. it collects and implements signals more than 16,000 times per second to ensure smooth rotation of the rotor.

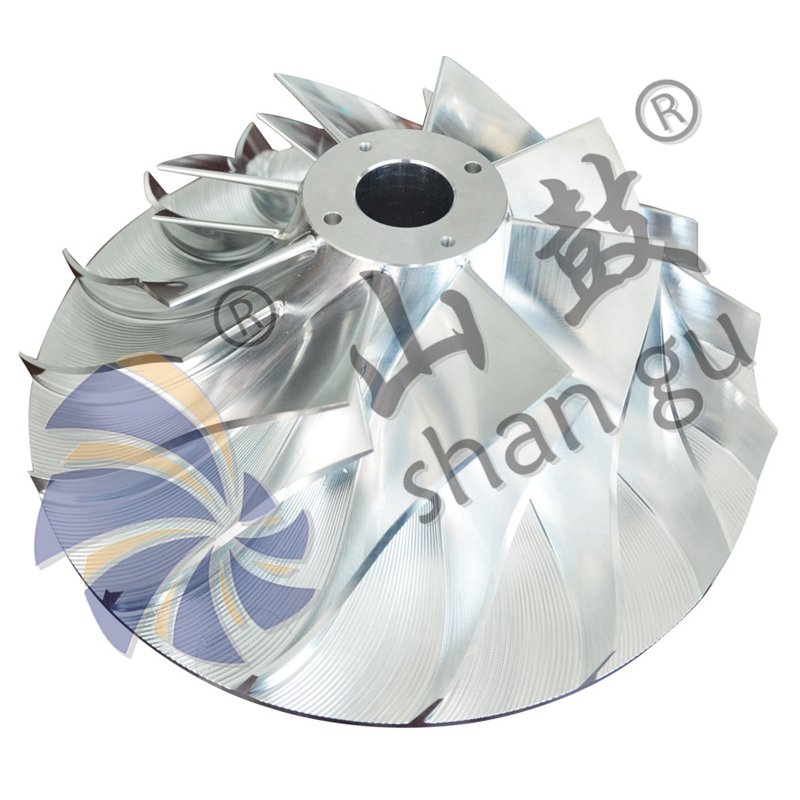

Three Dimensional Flow Impeller

1. Adopting temary flow theory design, the impeller has highefficiency and wide working area.
2. The material is made of aviation·grade aluminum alloy orfitanium alloy, which is integrally milled by a five.axis machin.ing center and then subjected to special surface treatmentto enhance the corrosion resistance of the impeller andreduce wear during long-term high-speed operation.
3. The impeller has undergone 100% radiographic inspection, and has undergone 115% overspeed testing after pro-cessing to ensure safety and reliablity throughout the entirelife cycle.

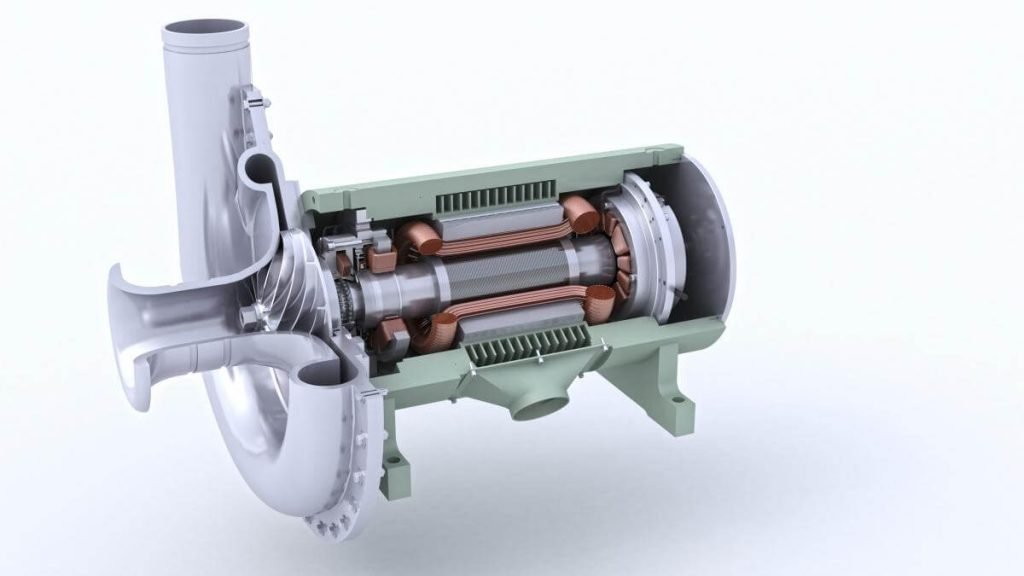

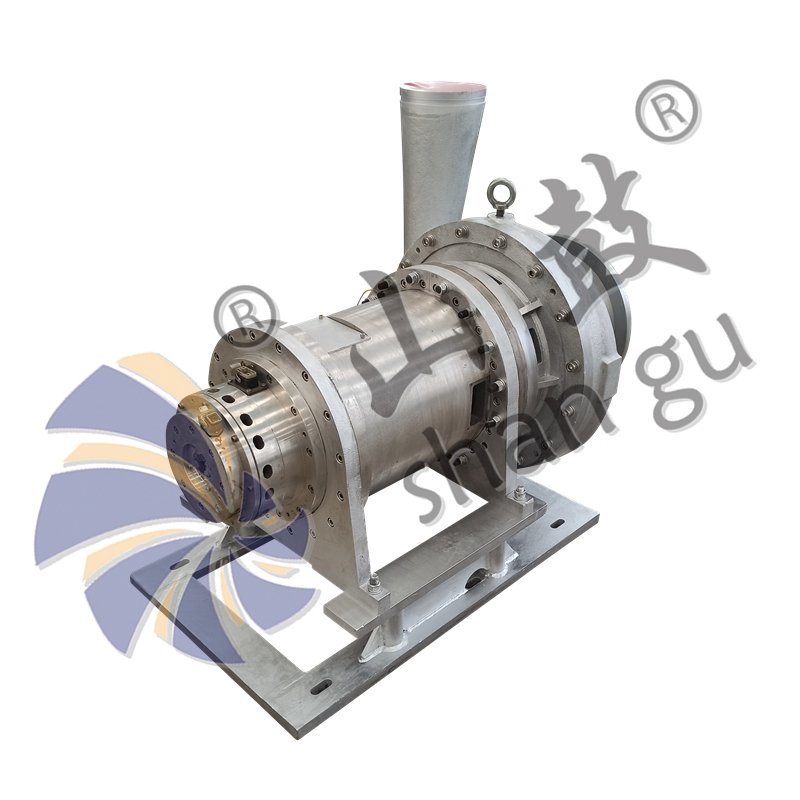

High Speed Motor

1. Using high-speed permanent magnet synchronous motor, the motor is small in size, light in weightand high in power density.
2. The motor is directly connected to the impeller, eliminating the need for other transmission structures and completely eliminating transmission losses.
3. Equipped with a seif-power generation system and aprotective bearing system to effectively prevent damage caused by sudden power outages or maifunctions.

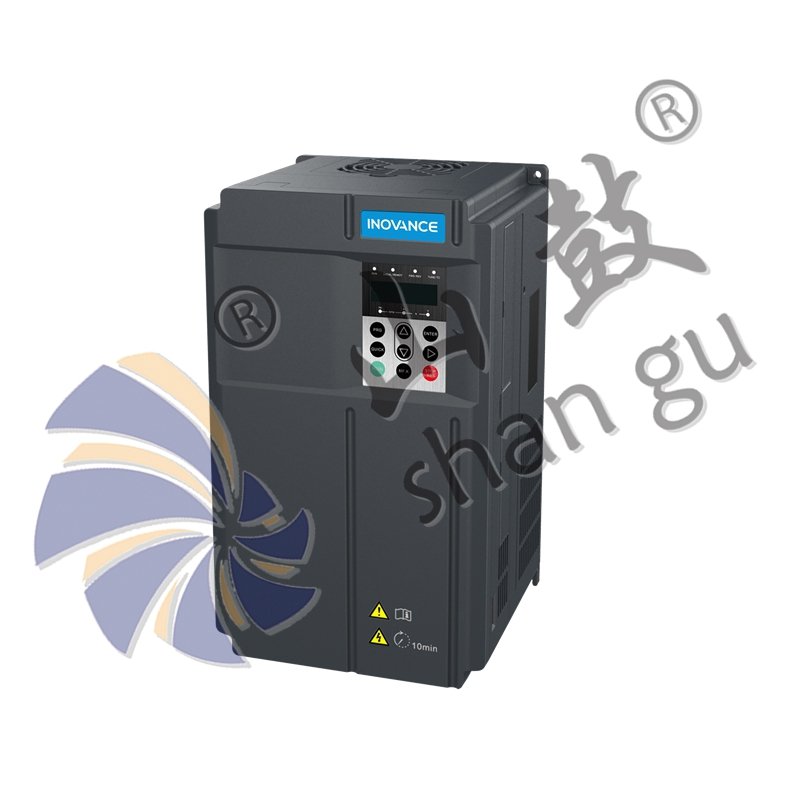

Intelligent Frequency Conversion Control System

1. Adopt low-noise, low-vibration, high-performance frequency conversion speed control system with high output frequency to easily drive high-speed motors;
2. Using PLC +GPRS/3G/4G, wireless remote realtime monitoring and adjustment of the blower operating status can be achieved.
3. Adopt Siemens series PLC, which is stable and reliable. The control system is modular, which facilitates repair, maintenance and subsequent function expansion.
4. it has a wide working range and can automatically adjust the motor speed according to the pipe net.work conditions to achieve precise output.

Technical Parameters

Model	SC22	SC30	SC37	SC45	SC55	SC75	SC110	SC150	SC200	SC250	SC300	SC350	SC400
Pressure Rise (Kpa)	Flow Rate(m3/min): 1atm, 20℃
40	20	32	38	47	60	90	123	180	235
50	17	24	33	40	50	75	103	150	190	240	290	375	390
60	15	21	28	34	40	65	88	130	160	205	245	320	330
70	13	19	25	31	35	55	78	105	145	180	220	280	290
80	10	18	22	28	32	50	73	90	130	155	185	250	255
90					30	45	63	80	115	140	165	225	240
100							58	70	110	130	150	205	220
120									100	115	130	180	190

PRODUCT CHARACTERISTICS

High Efficiency And Profitability

Adopting self-designed high-efficiency centrifugal impeller + high-efficiency permanent magnet synchronous motor drive;
Compared with the traditional positive displacement Roots blower, the efficiency can be increased by 30%;
Compared with the traditional multi-stage centrifugal blower, the efficiency canbe increased by 20%;
Compared with the traditional gear-speed single-stage centrifugal blower, the efficiency can be increased by 12%.

Low Noise And Environmental Protection

Due to the use of advanced magnetic bearing system, the rotating parts have no contact with the mechanical system, no mechanical friction, stable operation, small vibration, and low noise of the whole machine.

Easy To Install Easy To Operate

The magnetic bearing turbo blower is light in weight and small in size. it does notrequire large lifting equipment and can be easily installed by two technicians.

No Lubricating Oil, No Mechanical Maintenance

The advanced magnetic bearing technology eliminates the complex gearbox and oilybearings required by traditional blowvers, so it is free of lubricating oil and mechanical maintenance;
lt effectively reduces the user’s maintenance cost and improves the stability of operating conditions.

Frequently asked questions

What is the noise level of the unit?

Due to the use of advanced magnetic bearing system, the rotating parts have no contact with the mechanical system, no mechanical friction, stable operation, small vibration, and low noise of the whole machine. The noise level is lower than 80DbA.

How fast will you process my inquiry?

If we know all the parameters, then processing and sending the offer is a matter of a few hours.
