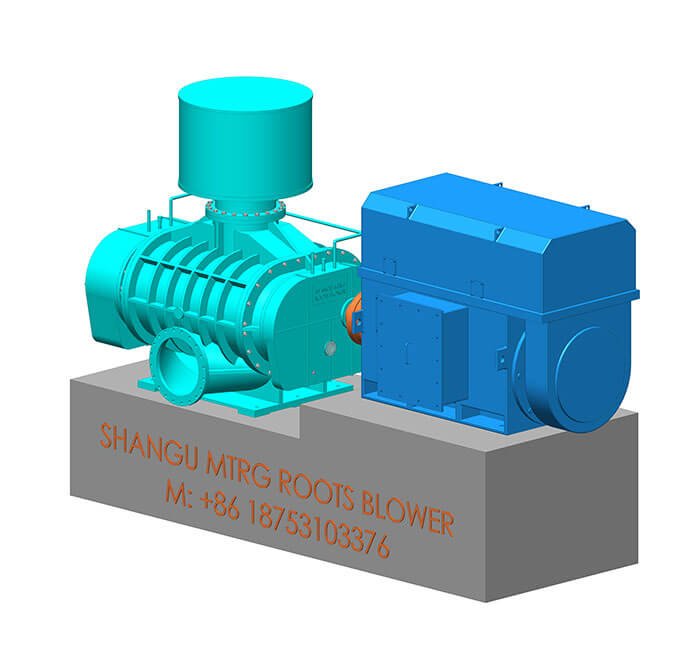

MT Series ROOTs Blower
MT SERIES TWO LOBES ROOTS BLOWER
- Pressure Rise:9.8-98Kpa
- Air Capacity:317.9-1292m³/min
- Motor Power:110-1250kw
- Bore Size:600-900mm
- Drive model:Coupling
MT SERIES TWO LOBES ROOTS BLOWER
The MT series Roots blower is a new product developed and designed by Shangu Group, with years of manufacturing experience, to meet the needs of users for large capacity and high pressure roots blowers. This series of roots blowers uses a special impeller profile design, effectively improving the efficiency of the blower and reducing its energy consumption.
We currently produce 9 sizes of MT ROOTs blower units.
Main Advantages
The overall concept of the unit arrangement is designed with emphasis on maximum reliability and functionality, easy inspection, and maintenance.
- Low operating costs
- Easy operation
- Convenient Maintenance
- Oil Free Air
- Low Noise thanks to Special Casing Design and Combined Silencer
- All parts are Machined by CNC Center to ensure accuracy
- All blowers undergo two hours of testing to ensure that only qualified products can leave the factory
- All impellers have undergone dynamic balance testing
- Water Cooling for Lubrication Oil
Supply Scope
- Roots Blower
- Couplings
- Coupling Safety Cover
- Foundation Bolt
- Adjusting Pad
- Inlet Silencer
- Flexible Connector
- Outlet Silencer
- Pressure Gauge
- Safety Valve
- Check Valve
- Starting Oil Filling
- Electric Motor in Efficiency Class IE3
- Flange Pads
- Operation & Maintenance Manual
Optional Equipment
- Soundproof Enclosure
- Bearing Vibration Sensor
- Bearing Temperature Sensor
- Lubrication Oil Temperature Sensor
- Suction & Discharge Pressure Sensor
- Suction & Discharge Temperature Sensor
- Matting Flange
- Frequency Converter Control Cabinet
Applications
- VPSA Oxygen Plant
- Pneumatic transport
- Flotation
- Gas Combustion Supporting
- Food Vacuum Package
- Special Gas Delivery(Biogas)
- Power Plant
- Cement Plant Kiln Air Supply
Technical Parameters
| Model | Diameter mm | Pressure kPa | Air volume m3 /min | Motor Power kw |
| MTMG395 | 400 | 9.8-78.4 | 156.0-252.0 | 55-400 |
| MTMG400 | 400 | 9.8-68.6 | 178.0-280.0 | 55-400 |
| MTMG450 | 450 | 9.8-49 | 213.4-322.5 | 55-315 |
| MTRG350 | 350 | 9.8-98.0 | 159.3-231.6 | 55-450 |
| MTRG400 | 400 | 9.8-83.3 | 203.1-280.0 | 75-400 |
| MTRG445 | 450 | 9.8-78.4 | 231.1-328.2 | 75-560 |
| MTRG450 | 450 | 9.8-73.5 | 262.4-322.5 | 75-315 |
| MTRG500 | 500 | 9.8-63.7 | 327.4-452.4 | 90-560 |
| MTRG600 | 600 | 9.8-58.8 | 380.8-484.2 | 110-710 |
Frequently asked questions
For all sizes of unts, we produce our own acoustic covers, adapted to the location and customer requirements. These in conjunction with our silencers show a high noise attenuation efficiency.
At the same time, we design the set in the middle band of the speed spectrum so that the resulting sound pressure level is as low as possible.
If we know all the parameters, then processing and sending the offer is a matter of a few hours.
